Heavy rail / Urban light rail

Rolling stock test and fatigue design criteria

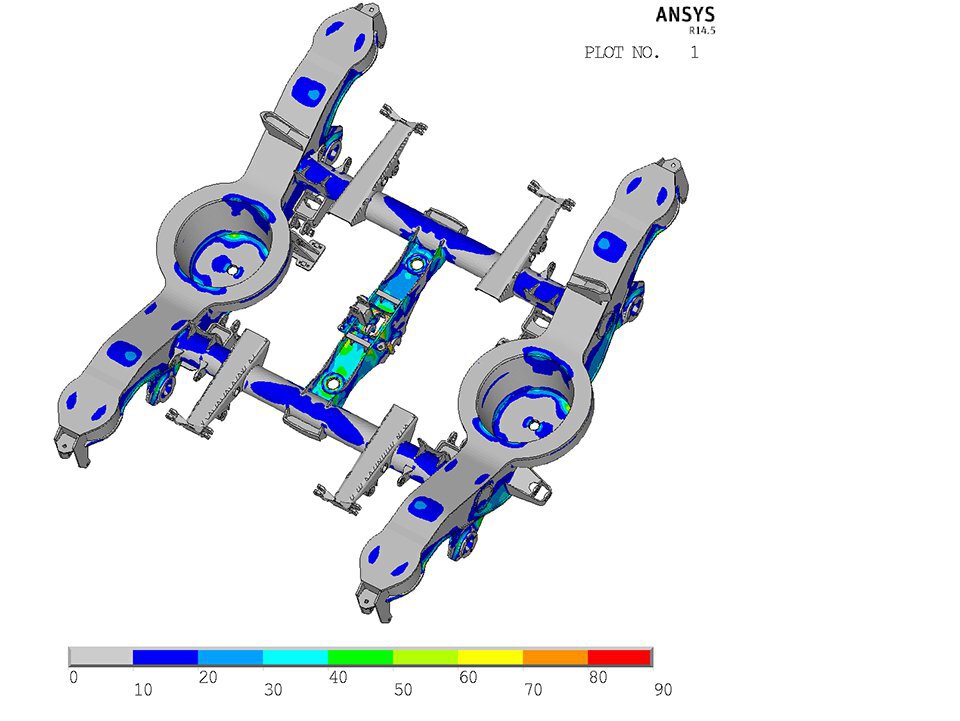

Optimising the dimensions of vehicle bodies and bogies frames

Objectives

  • Research into innovative structural concepts
  • Propose efficient, economically viable solutions for fulfilling a particular function
  • Establish, analyse and confirm mechanical dimensions
  • Provide proof for rolling stock type approval
  • Identify the causes of component failures

I should like to be contacted.

Please complete the contact form. One of our engineers will be in touch with you as soon as possible.

Go to form

Test
facilities

EXTRAS

  • Design optimisation = weight advantage
  • Type approval of a structure with fewer physical tests
  • Shorter timelines for developing a new concept
  • Approval of a component to be used under new operating conditions (weight, for example)



INPUT DATA

  • Rolling stock characteristics
  • Digital model of bogie frame and body (CAD)
  • Bogie/frame component diagrams
  • Laws of behaviour of materials



REFERENCES

  • MATISA:

Assistance in validating a bogie frame,

Validation specifications and calculation sheets,

Validation specifications (loads and strain gauge diagram) and test results



  • ALSTOM:

TGV bogie frame calculations following increase in passenger mass



  • Techni-Industries:

Bogie frame calculations and assistance with rig test via calculation/test correlation,

Independent technical opinion of mechanical behaviour of a bogie frame submitted to heavier loads



  • RICARDO:

Bogie frame calculations following increase in passenger mass



  • FRAMAFER:

Calculations on 4 bogie frames for validation purposes



Our
references

Satisfied customers

MATISA
ALSTOM
Techni-Industries
RICARDO
FRAMAFER

Norms

- EN 13749 -

Définition des cas de charges numérique ou sur banc d’essai
